H E N R Y   B A C K H O E S
UNEQUALLED FOR VALUE

SPECIFICATIONS

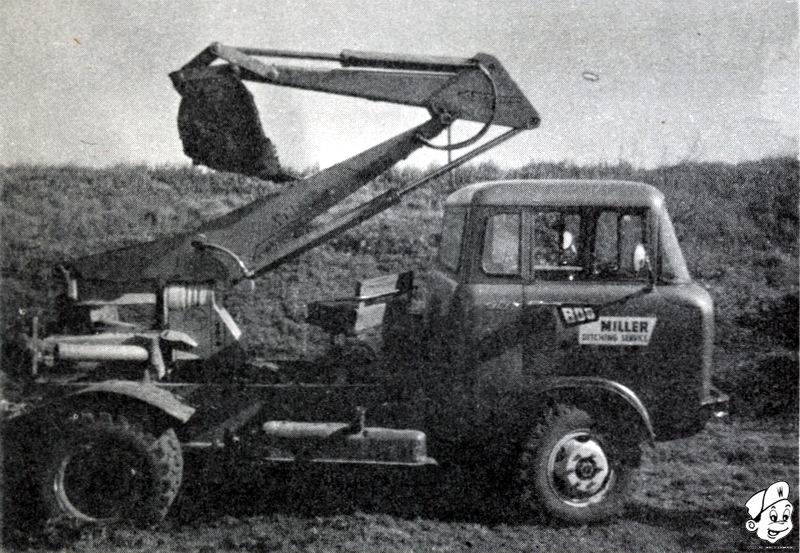

MARK V

Designed for more power at the bottom of the hole ... wider stance ... more stability ... moves more dirt per cycle ... new rotary swing cylinder ... 200 degree uninterrupted arc of swing ... more bucket rotation.

Digging depth                                                             13'6"
Loading height                                                           10'2"
Swing                                                              200 degrees
Operating pressure, maximum                          1750 PSI
Reach from swing axis                                              16'6"
Reach from center line rear axle (approx.)            19'9"
Overall height for transport                                    10'10"
Ground clearance for transport                                  14"
Pump @ 1800 RPM                                                 23 GPM
Valve, sectional -- parallel circuit                     Six spool
Bearings         Replaceable bushings at all pivot points
Connecting pins                              1 1/4" and 1 1/2" dia.
Bucket arc                                         185 or 223 degrees
Cylinders (Bore x Stroke x Rod diameter)
Boom                                                               4" x 37" x 2"
Crowd                                                       3 1/2" x 37" x 2"
Bucket                                                      3 1/2" x 28" x 2"
Outriggers                                          3 1/2" x 16" x 1 3/4"
Swing (Rotary vane type)             8" x 200 degrees x 3"


                    HENRY MANUFACTURING COMPANY, INC., TOPEKA, KANSAS
